Investigating A Rattle

Our 1972 Jaguar E-type V12 Series 3 has been in the experienced hands of classic car technician Jonn.

A rattling sound has been heard coming from under the dash of this beautiful classic car. Jonn has been investigating what could be causing the noise and finding the best way of resolving it.

During his investigation, Jonn traced the rattling noise to a loose ac fan.

Once the fan was properly secured, Jonn found that the noise was no longer happening and everything was working as it should.

Reassembly, Electrical Work, And More

After working on our 1972 Jaguar E-Type V12 Series 3 for the last couple of weeks, classic car technician John has been busy reassembling this beautiful classic car. Once everything was back together following the fitting of a hidden battery isolator, John conducted some tests and was pleased with the results.

While he was working on our E-Type, John noticed that there was a minor blow on one side of the exhaust. He resealed the exhaust to solve the issue.

The carburettor float bowls were stripped as the carbs were flooding at idle speed which indicated sticking needle valves. Each bowl was full of dirt and the needle valves were found to be covered in dirt too when they were removed.

The carb bowls were cleaned, blown out, and refitted. The last carb needed a gasket made for the float bowl as the old one was torn.

A new fuel filter was fitted near the tank and the sight glass was clean and free from dirt which made John think it could be the fuel lines themselves causing the issues. He stripped and blew out the fuel lines from rear to front. A lot of dirt came out before everything was reassembled and tested.

Our 1972 Jaguar E-Type V12 Series 3 had a good clean and, as you can see from the pictures below, looked extremely good afterwards.

In preparation for our E-Type leaving the workshop, John went on to check and adjust the tracking before turning his attention to the reverse lights that were not working. When they were powered up with the power probe, they worked fine which indicated that the bulbs and wiring were all ok. John stripped the centre console to access the switch. He removed the switch and found this was where the fault was. He lubricated the switch and refitted it without spacer shims before reconnecting it. After testing, John was satisfied that everything was working as it should.

New Manifolds For Our 1972 Jaguar E-Type

Our 1972 Jaguar E-Type V12 Series 3 has had new manifolds installed by classic car technician Jon.

There was lots of stripping and refitting to be done throughout the process but, the end result made all of the effort very much worthwhile.

While Jon was working to strip components to access the offside exhaust manifolds, there was a particular bolt that proved to be quite challenging. The problem was that the bolt was seized and, each time Jon tried to remove the bolt, it felt like it was going to snap. Fortunately, with lots of patience (and even more lubrication), Jon was able to successfully remove the bolt and continue his work on gaining access to the offside manifolds.

Once the manifolds were removed, Jon cleaned everything up in preparation for the new ones to be installed.

The new manifolds were put in place and secured before Jon reattached the engine to its engine mounts.

When the new exhausts were fitted and secured, the original front pipe was found to be too long. Classic car technician Monty stepped in to help at this point and shortened the pipe while Jon continued his cleaning and reassembling.

While Jon was putting our E-Type back together, he noticed that a small coolant pipe was completely blocked. He unblocked this and replaced the hose from the header tank to this pipe.

As they were disturbed during the process of installing the new manifolds, all of the fuel hoses going to the carburettors leaked. These were stripped and replaced, as was the braided fuel pipe as this had gone hard and leaked too.

Once everything was back together, Jon found no obvious leaks. He replaced the vac hoses before starting the car. It ran as expected and Jon was satisfied.

The coolant vac filled and held pressure as it should.

Jon wasn’t done with his work on our E-Type just yet though as he went on to fit a battery isolator. To do this, he removed the top pad of the dash to meet the criteria of the car owner who wanted this part to be hidden. The glovebox and trim were removed so Jon could make and install a bracket to hold the isolator behind the glovebox.

A safe route needed to be found to route the cables through the bulkhead. Once Jon had decided on the best route, he drilled the holes accordingly. The isolator was then wired up and secured before the glovebox and trims were refitted.

Jon has spent quite a bit of time with our 1972 Jaguar E-Type V12 Series 3 lately and lots of progress has been made. It won’t be too much longer before we have to say goodbye to this beautiful classic car as it returns to its owner to enjoy being back out on the road again.

Investigating Exhaust Blow – 1972 Jaguar E-Type V12 Series 3

Classic car technician Jon has been investigating the exhaust blow (blowing noise) on our 1972 Jaguar E-Type V12 Series 3. From listening to it, Jon believed that the issue seemed to be coming from the offside bank of the exhaust manifold.

To confirm his suspicions, Jon had to strip and investigate this area of the car.

After a bit of work, Jon was able to gain access to properly investigate. He found that the front manifold of this classic car was cracked and was causing the blowing noise coming from the exhaust.

The front manifold was removed and was found to be in need of replacement. While Jon was waiting for the new part to arrive, and while he had access to it, he removed the rear manifold too in order to check it was in better condition than the front.

Jon went on to clean all the parts and mating surfaces ready for the new parts to be fitted. Once the new parts have arrived and have been put into the car, Jon is hopeful that the exhaust blow would have been resolved.

Work will continue on this beautiful Jaguar E-Type to make sure it is soon ready to leave the Bridge Classic Cars workshop and be returned to its owner. We know that once it’s back out on the road, it will be extremely enjoyable to drive and experience.

A New Exhaust Fitted

A new stainless steel exhaust has been fitted to our 1972 Jaguar E-Type V12 Series 3 by classic car technician Paul.

While Paul was working on this classic car, he also removed the centre console to gain access to the gear selection illumination. He needed to do this in order to fit a new bulb which was required.

E-Type Suspension

Classic car technician Paul has been working on the suspension of our 1972 Jaguar E-Type V12 Series 3.

He installed new poly bushes to the front suspension which will absorb any bumps and knocks as well as reduce noise and vibration once the car is back out on the road.

Everything will be put back together and work will continue on this beautiful classic car.

Removing An American Emissions System

Our 1972 Jaguar E-Type V12 Series 3 had an American emissions system installed which classic car technician Paul has been working to remove.

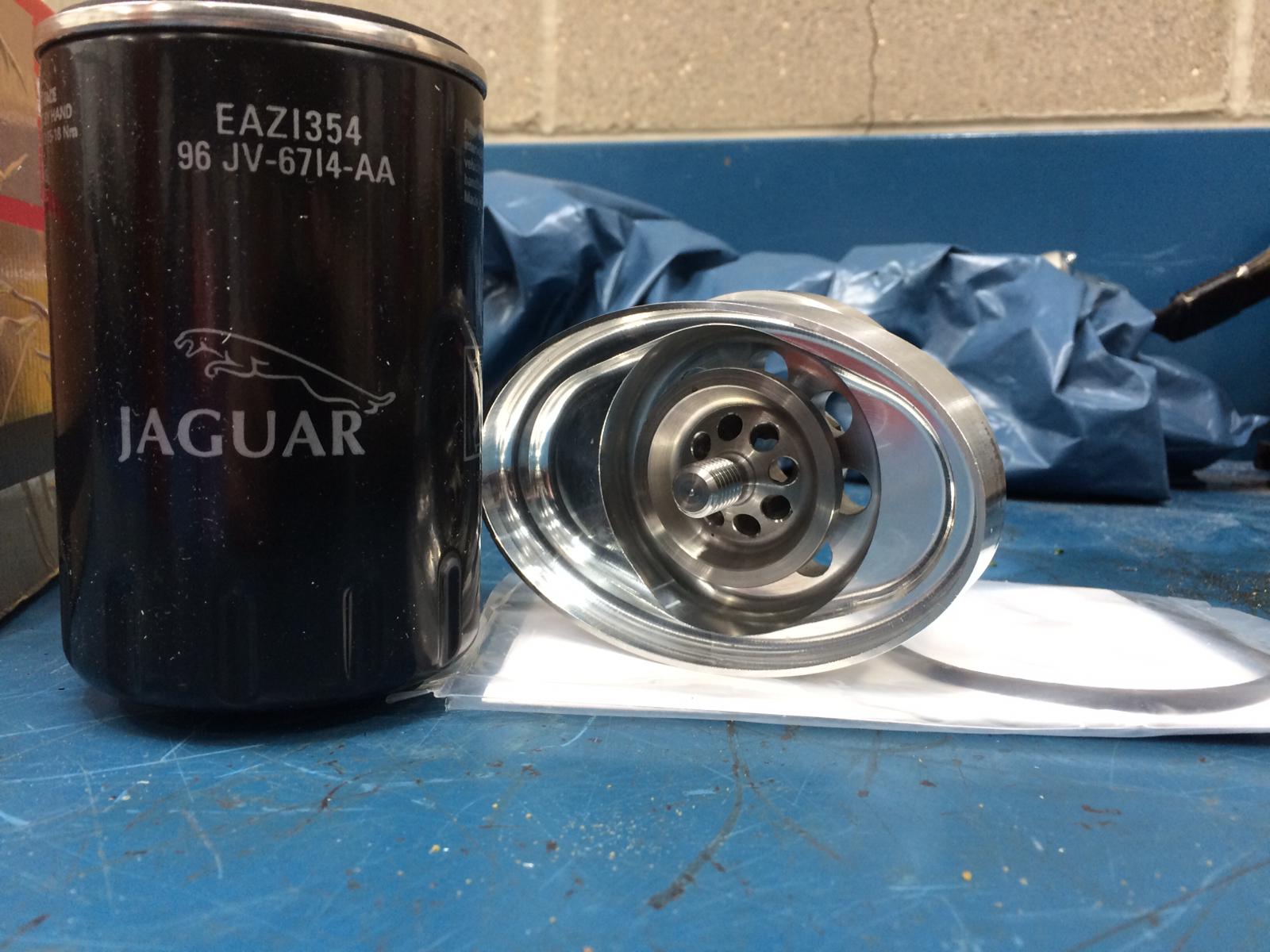

He also serviced the car to make sure it will be in the best condition possible when it gets back out on the road.

New Arrival: 1972 Jaguar E-Type V12 Series 3

A new arrival this morning to the Bridge Classic Cars workshops. Working in conjunction with our good friend Lee at Autoshack. The 1972 Jaguar E-Type V12 you see below belongs to a customer of Lee’s having very recently been purchased from the The Classic Sale at Silverstone 2022 hosted by Silverstone Auctions.

The description reads as follows:

A decade after the original Jaguar E-Type arrived, the design progressively matured through 1971 with the introduction of the Series 3.  Designed to showcase the new smooth and torquey 5.3-litre engine, originally developed for Le Mans, the Series 3 cars were available as a Roadster or a 2+2 Coupé. The Series 3 is easily identifiable by its large cross-slatted front grille, flared wheel arches, wider tyres, a larger bonnet bulge, updated bumpers, four exhaust tips, and a badge on the rear that proclaims it to be a V12. It also featured uprated brakes, power steering as standard and a large horizontal scoop added to the underside of the bonnet to assist with cooling. The interior was entirely new in the V12, with more comfortable seating, stylish new door panels and a smaller, dished and leather-rimmed steering wheel. Being slightly larger and altogether much softer in nature, the E-Type in Series 3 form had lost the wildness of its youth but gained the long-legged touring profile to which it was arguably better suited.

The United States was always the target market for the E-Type and the model evolved over a decade to cater for the needs of the American driver, a fact that has always been downplayed this side of the pond. The ‘Jagwar’ has always been held in high regard by the American enthusiast-driver that considered the homegrown muscle cars as too blue-collar and the precocious exotica of Italy as too expensive. The Series 3 had now evolved into a sports coupé that offered a smooth automatic gearbox and rear seats. The iconic lines of the early car is still unashamedly British but capable of outperforming bloated V8 rivals with its smooth V12. According to the Heritage Certificate, this Coupé, with automatic gearbox and air conditioning, was dispatched to British Leyland, New York on 10th April 1972 in Primrose Yellow with a Cinnamon interior. Our vendor informs us it was owned by one family from new in Louisiana, and it was imported to the UK and registered on the 1st December 2019.

Buying the car on the 1st December 2021 with the intention of reliving his E-Type owning youth as a racing engineer with the Le Mans winning Group 44 Race Team, our vendor’s ill-health sees the car regretfully offered to auction. The odometer reading of 23,393 miles, at the time of cataloguing is assumed to be genuine, although not warranted, whilst our vendor asserts that the family ownership prior to the 2019 registration in the UK is certainly persuasive. The colour was changed during restoration whilst the delightfully original Cinnamon leather shows lovely patina. Recently a new braking system was fitted to the front and new pads fitted to the rear. Our vendor, having worked on Jaguar V12 racing engines changed the oil himself, and the car will have a fresh MOT for the sale. The history file contains receipts, Heritage Certificate, importation documentation, handbook and V5C.

Residing overseas, the customer would like the car fully assessed and for a full service to be carried out. There also seems to be some issues with the cooling system and air conditioning which we would also like to look at.

Keep up to date with our progress as we get the car prepared and ready for it’s trip back home to Europe.
