1973 Jaguar E-Type Roadster Series 3

E-Type Shape Up

Matt and Chris have been working on applying filler to our white Jaguar E-Type so that they can smooth and shape the body, ensuring there’s

Read More »

Jaguar E-Type Redesign

We’re working on a full restoration for this lovely Beverly Hills 1973 Jaguar E-Type Series 3 V12. Originally sourced by us from Beverly Hills Car

Read More »

Prime time for the Jaguar E-Type!

Chris and Matt have given the series 3 1973 Jaguar E-Type a coat of primer this week! We’re looking forward to seeing it in all it’s colourful glory!

Shaping up the Jaguar E-Type

Chris and Matt are continuing the work on shaping up the body of the Jaguar E-Type roadster in the paint shop.

Once the shell was back from the sand blasting, it was re-assembled, making sure all the panels lined up. From that, Chris and Matt were able to assess what condition the shell was in. It was then given a coat of epoxy primer to protect the metal and a thin layer of body filler to perfect the shape of the car and allow them to give each panel an equal gap around all the edges.

Shaping the future of the E-Type

Chris and Matt are starting to shape up the E-Type body shell. The car is now in Epoxy primer and once prepared will be ready for the paint application process.

Exciting times ahead for our 1973 Jaguar E-Type.

Small change for Jag E-Type!

James has been busy repairing one of the protective covers for the brake and fuel lines, which sits underneath the back of the Jaguar E-Type V12. This one had gone misshapen and had some corrosion, from moisture being let in along a damaged edge, which is why it needed work doing to it. The other one is in much better condition.

James fabricated and spot welded the corroded one to get it back into its former glory!

E-Type Shape Up

Matt and Chris have been working on applying filler to our white Jaguar E-Type so that they can smooth and shape the body, ensuring there’s not rippling and the surface is even in preparation for paint.

Jaguar E-Type In Epoxy

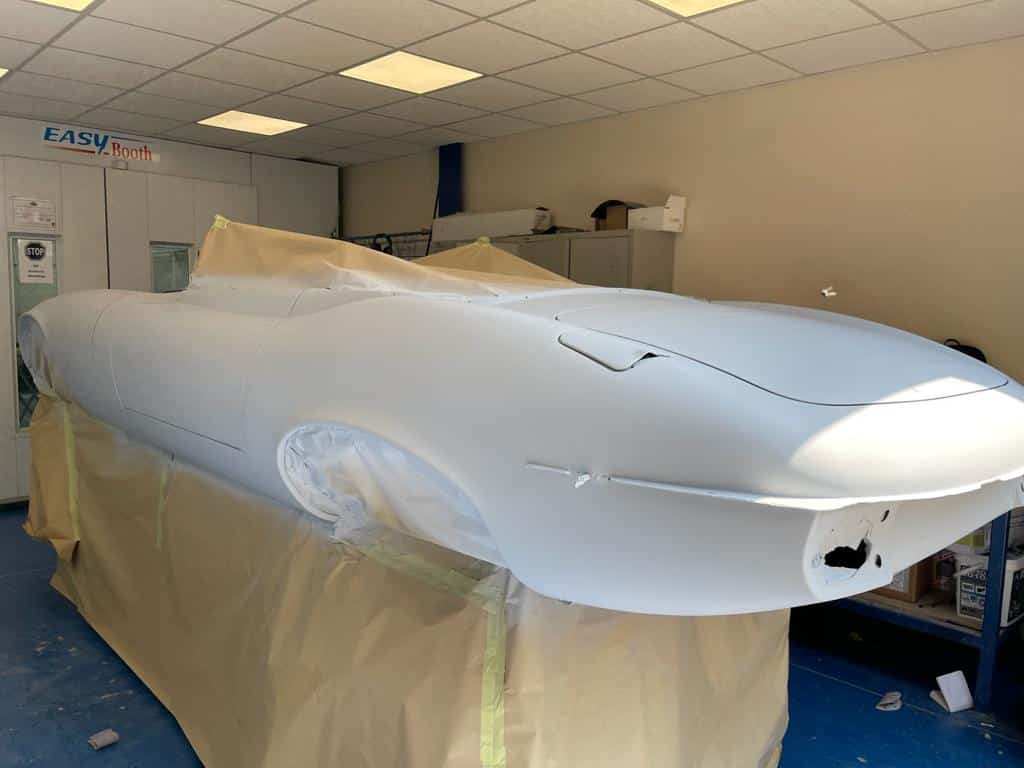

Our Jaguar E-type Roadster that’s in for a full restoration is currently sat in the paint shop in epoxy primer. Matt and Chris will then need to shape up the body by applying filler to make sure the body is smooth and perfect without any dents.

White E-Type In For Paint Prep

Our 1973 White E-Type Roadster is in the paint booth and being prepared for paint. Matt has been getting it read for epoxy primer by removing excess sealer and cleaning the welds. This E-Type, which used to be white, will soon be a new shade…

E-Type Into The Paint Booth

The body of our 1973 Jaguar Series 3 Roadster has made its way to our paint shop to start on the colour prep which includes coating it in epoxy primer. You can see the before and after video below.

Brian has also been fitting the second squab cover to the frame. He’s pulled the cover over the frame and stapled the front section to the bottom of the frame. Brian then stapled the rear flap to the bottom of the frame, fitted the brackets to the base of the seat, cut holes in the sides for the brackets to fit into and then bolting the squab to the base of the seat.

He then moved onto fitting the headrest stalk to the new headrest foam, fit the cover to the foam and stapled the cover to the headrest stalk. Brian then glued the vinyl to the headrest plates and screwed the headrest plates to the headrests.

Jaguar E-Type Roadster Making Progress

Brian has been working on adding headrest brackets onto the seats by adding the chrome trim. He’s stapled the bottom of the frame, cut holes for the brakes and fitted them.

The fabrication bay have also completed stripping the body to bare metal so that its now ready for paint prep.

Chris has begun coating panels and parts in to epoxy primer in preparation for colour.

Jaguar E-Type’s New Interior And Exterior

Our 1973 White Jaguar E-Type Series 3 Roadster is undergoing a double-whammy with both interior and exterior being worked on simultaneously. Brian has been assembling the seat bases by fitting the rubber diaphragms to the seat frames, marking out the foam and gluing it to the base, gluing the centre of the seat covers to the centre section foam pieces and then applying the cover. Brian then had to fit the seat belt switch and seat runners before finishing the bases.

Matt has been working on the bonnet so that its ready to have colour. The bonnet has been stripped down and covered in Epoxy and primer. Certain areas have been painted in the body colour ready for when the bonnet is bolted back together.

White Etype Rear Axel Building And Lead Hole Detection

Scott has been rebuilding the rear axel for our 1973 White E-type Roadster. Everything has been replaced, refurbished and rebuilt to create a perfectly functioning rear axel.

James has also been doing some lead work on the E-Type as he works on fixing holes left by removing American modifications.

Chris has also rubbed down and primed the bonnet as well as the wheel arch on the bonnet which has been stripped of underseal and cleaned ready for epoxy primer. He’s then applied epoxy primer to bits for the bonnet.

Jaguar E-Type’s Leading And Drying

Our 1973 Jaguar E-type Series 3 Roadster is currently in the fabrication bay where James and Pricey are working on leading the body. This classic is in fantastic shape with very little bodywork needing to be done. Pricey tells us “I’ve never seen one this good and I don’t think I ever will. It’s amazing.”

Thanks to the dry conditions of California, this E-Type has survived the test of time without collecting too much rust, something our engineers are certainly thankful for!

Some of the external and internal parts have gone to paint to where they’ve received a layer of primer so that they’re ready for colour.

White Jaguar E-Type Leading And Trim

The Jaguar E-Type Roadster Series 3 is back in the fabrication bay for some leading. The selection of photos below show inconsistencies in the front over-riders that need addressing to obtain symmetry and leading the spot-welded joints on the shell to ensure there is no cracking or sinking of fillers and paint later on.

We’ve also received the trim pack for our E-Type which is in a sophisticated muted green:

Jaguar Etype Bonnet Shaping

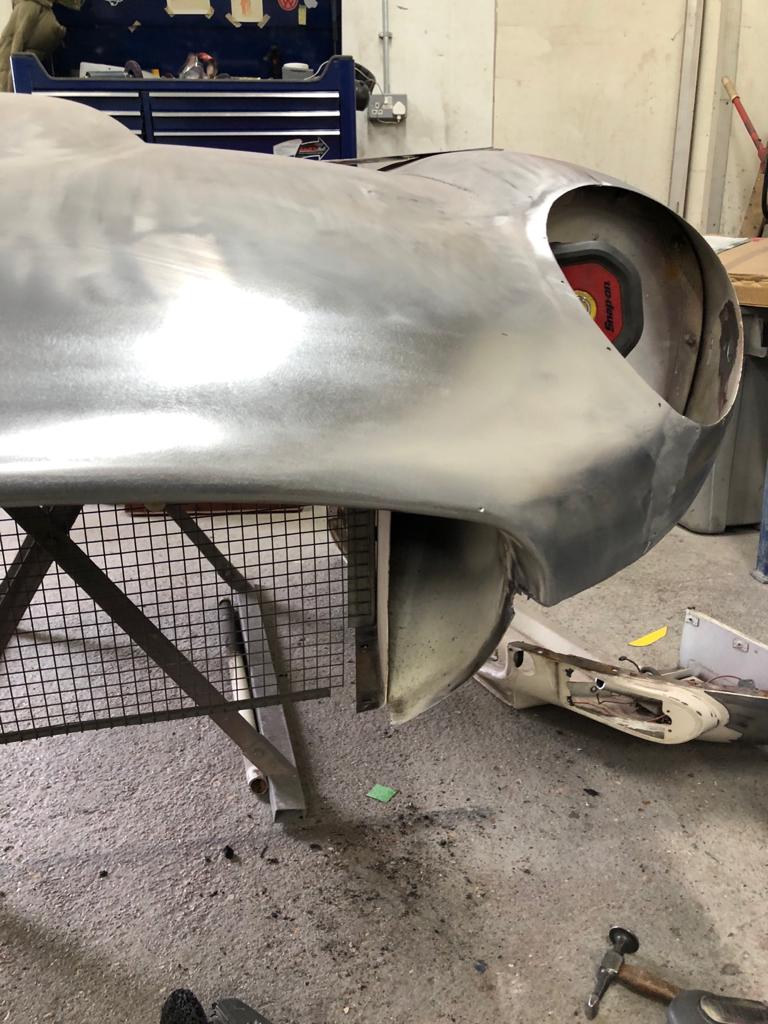

James has been shrinking the bonnet skin of our 1973 Jaguar E-type Series 3 Roadster to make profile match on both sides. Once he finished converting the left hand front bumper from USA to UK spec he fitted it with rubber and re-shaping it to give an even gap on the body. This is so that the runner is not pinched or deformed once assembled.

White Jaguar E-Type Inner Parts Painted

More inner components have been painted for the 1973 White jaguar E-Type Series 3 Roadster. Parts have been had air box primer applied and then painted silver. Other parts have been painted black.

White E-Type Begins Its Paint Journey

Before we get the body and panels of our 1973 Jaguar E-Type Series 3 Roadster in for paint, we need to start painting the internal parts in black epoxy. The majority of these parts will be totally or partially hidden either under the car or within it, however, it is important to have them all looking uniform and neat.

Jaguar E-Type Handbrake Stripped

Scott has stripped the handbrake callipers and sandblasted the parts so they could be painted. Scott then started to put the rear axle together.

Jaguar E-Type Cleaned, Sand Blasted And Prepped

Our 1973 Jaguar E-Type recently came back from Abbey Protective Coating’s for sandblasting. Now that any excess rust has come off, we can start to work with all the stable metal that’s left. This E-Type is a particularly strong example as there was very little corrosion.

Tom has been sorting out parts which were then powder coated and sent back from Abbey sandblasters.

Scott stripped the brake callipers before they were sent away to be refurbished, as well as stripping the heater box down and checking it over. He made sure that the matrix was in good condition, then he got a load of the parts sand blasted so they are ready to be painted.

Matt has prepared the panels by striping them back to bare metal and given a protective them a rust proof coating.

Some elements have been painted in DTM black. These components are internal and are kept black to look uniform.

Brian has also started to take apart the seats and hood to be re-covered.

Scott has put the heater box back together after the parts being painted. He’s cleaned and polished the parts and replaced the foam seals and gaskets where necessary, so it’s ready to fit straight to the car when that time comes.

White Jaguar Etype In Pieces And Parts

The 1973 White Jaguar E-Type dismantling continues under the capable hands of our technician Scott who has recently been focusing on taking apart parts, cleaning and organise them ready be re-fitted. He’s then sorted through the chrome to find out what parts need repairing and re-chroming.

Jaguar E-type Sheds More Parts

Scott has been dismantling more Jaguar E-Type elements and started to clean up and organise them ready for refitting. He’s sorted through the chrome and found out which parts needed repairing and re-chroming. Having come in as a working car, this 1973 Jaguar E-Type Roadster needs very little in the way of new parts and is simply needed to be dismantled so that Scott can clean up the parts and make small modifications.

We’ve also sent more parts off to be sandblasted.

White E-Type’s Front Suspension

Our 1973 White E-Type Roadster has had its front suspension fully stripped down as Scott starts dismantling the rear axle in order to repaint and refurbish all the parts.

This lovely E-Type came to us in working condition, so much of the stripping is purely to take elements apart to clean and tidy up, and to get to what’s around them.

The body of the E-Type has been placed on the rollover spit and is ready for media blasting. Our media blasting is done at Abbey Protective Coatings which includes blasting heavy-duty particles at the metal to strip the paint off be leave the base metal remaining in good condition.

Putting The British Back Into The Jaguar

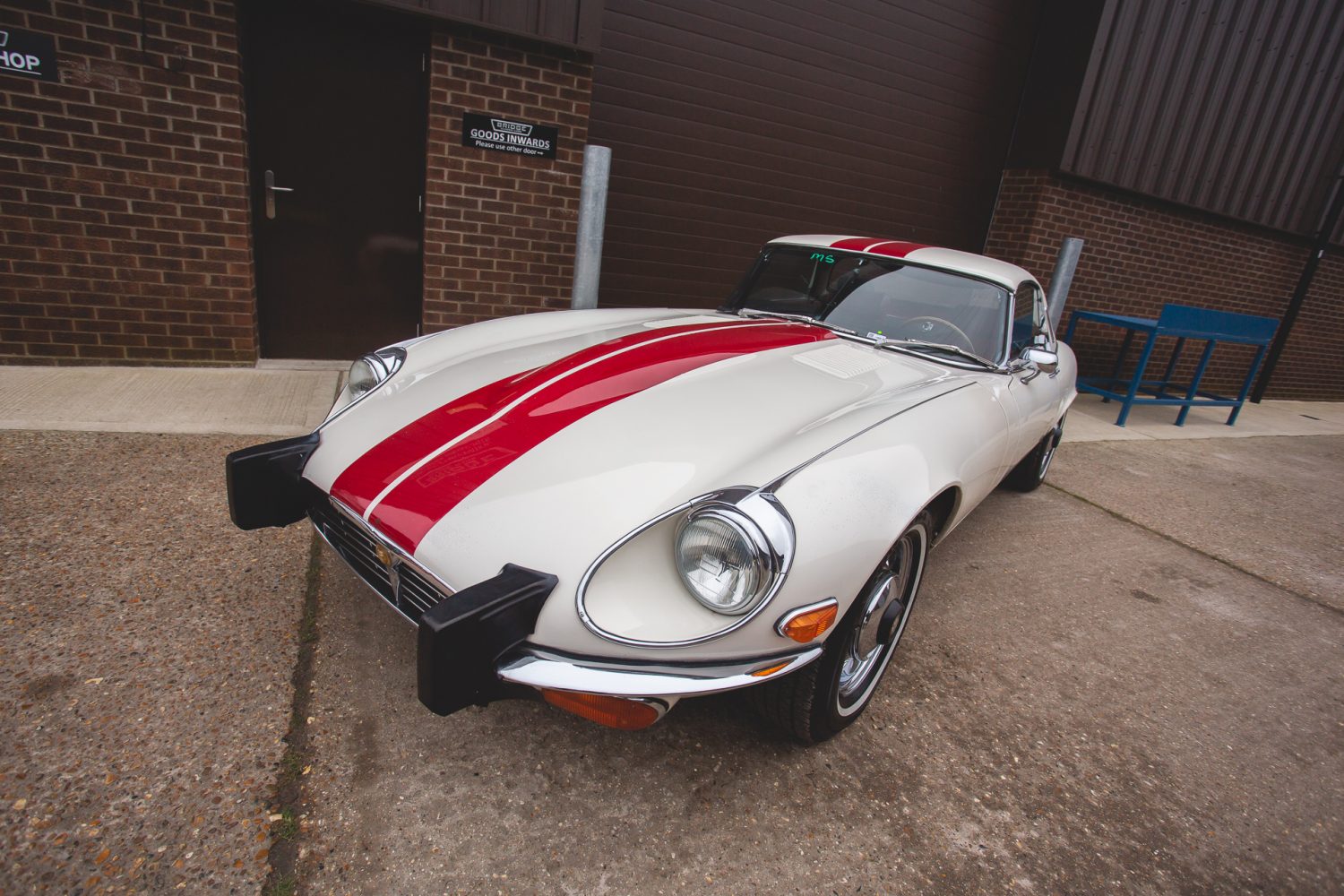

Having spent a lot of its life across the pond in sunny California, it’s only natural to find American modifications on our 1973 Jaguar E-Type Roadster Series 3, however, now back on home soil, parts such as rubber bumpers can be converted back to British/European standard. James has welded up all the holes and repaired the dents which had previously been filled, resulting in poor symmetry on the front.

Scott has started to to disassemble the front suspension components ready to be refurbished as well.

Pricey has scraped the body shell, removed the under sealer and sound deadening for media blasting. Pricey told us that the condition of the E-Type body is immaculate and holds very little rust for the age of the car.

White Jaguar E-Type Dismantling And Rebuilding

Scott has been working on marking the caution bar to identify where it fits back into the front axel later down the line. By leaving marks on parts, trim or the car, its helps our technicians know how pieces fit back together.

In the fabrication bay, the body is being prepared to be worked on and James has been panel beating the bonnet. The dents seem to have been previously corrected by using filler which isn’t always an effective method.

The dashboard and wiring loom has also been removed from the Jaguar along with the front frame.

White Jaguar E-Type: Disassembling Continued

Scott has been removing the front suspension, all brake and fuel lines and rear axle on our 1973 Jaguar E-Type Roadster. He’s also started to disassemble the front suspension components ready to be refurbished.

White Jaguar E-Type Engine Removal Continues

Scott has been removing the engine and gearbox from our white 1973 Jaguar E-Type Roadster. He has separated the gearbox from the engine, ready for the engine to be rebuilt. He has also started to disassemble the front suspension as well.

Jaguar E-Type Engine Removal

Our 1973 Jaguar E-Type from Beverly Hills has had its engine removed today so that it can be sent off to be rebuilt. Scott has been working to strip the engine of any pieces that don’t need to be sent off.

E-Type Bonnet: A Blank Canvas

We’ve now begun stripping the paint from our 1973 Beverly Hills E-Type bonnet so that it can sit in bare metal and ask as a blank canvas to be reworked and repainted. James in the fabrication bay has started to smooth out the body and will start to correct any imperfections. The bumper also needed some fabrication and welding to repair some corrosion damage.

This is the bare metal work stage that comes before the paint prep. The fabrication bay will get the whole body down to bare metal and then make sure it all lines are perfectly and there aren’t any bumps or rust in the bodywork.

As seen below, the original British Layland factory stickers are still intact on the underside of the E-Type bonnet and go to show how original this E-Type really is. Asides from the addition of the red strips and American modifications, this Jaguar is a stunning original example. Among James tasks has been to take off the American standardised bumper and weld in the hole so that the original Jaguar chrome one can be re-fitted.

Scott has also continued to dismantle the body of the E-Type too.
