One of the key elements of a build is the fit and finish of its most visible items. The first aspect you notice is always
One of the key elements of a build is the fit and finish of its most visible items. The first aspect you notice is always
One of the key elements of a build is the fit and finish of its most visible items. The first aspect you notice is always the most tactile, for instance, the doors. They must feel right in the hand, they must fit the appeture set for them by the designers. Without that, you will notice straight away.
Our in-house technician Scott, has skillfully rebuilt the doors on this beautiful 1979 Arrow Ferrari Daytona to a much better finish than could have ever been dreamt of when the car was first crafted 42 years ago.
It first began with the adjustments to doors themselves. Making sure the angular and crisp bodylines matched up with their counterparts on the long and low doors. After the for and aft adjustments had been painstakingly made along with the door strikers meeting the body striker in just the right place and time back to where they had been intended from the start, it was time to begin work on the internals of the doors themselves.
A rebuild of the window mechanisms needed to be done to ensure the specially sized and shaped windows would line up with both the channels and the seals (which had also been replaced by our technicians). It’s all in the details but with our highly trained and meticulous team, it’s all done just right and to the standards people have come to know Bridge Classic Cars for.
Of course, it couldn’t be complete without the finishing touches. A genuine set of iconic Daytona mirrors to grace its timeless silhouette.
With a project of this depth and complexity, some time is needed between each stage to research and fine-tune the approach that a project (and car) like this deserves. Expect to see more soon on this 1979 Arrow Ferrari Daytona here on the Bridge Classic Car Blog.
Scott has been repairing the exhaust manifolds for the 1979 Arrow Ferrari Daytona. They’re made of stainless steel and were cleaned up before being painted in black high-temperature paint to make them look like genuine Ferrari.
On Friday, the newly-built engine was plunged into the bay of the 1979 Arrow Ferrari Daytona, using a heavy duty crane, with Scott and Ady levering the engine in with the chains. The car originally came to us with an over-heated engine, so wasn’t running. Fortunately, it came with a spare Jaguar V12 engine. The old, blown one was stripped apart and any useful parts were left to be used in the re-building. Scott’s now been re-connecting everything back in the engine bay now it’s in.
Here’s another little update on the 1979 Arrow Ferrari Daytona. After adjusting the genuine Ferrari side lamp covers the other day to be able to fit on this replica, they’re now on. Scott is now working on repairing the exhaust manifolds. They’ll then be taken to the spray booth to be painted with paint that can withstand high temperatures.
We’ve found that the paint was flaking off the steering rack of the 1979 Arrow Ferrari Daytona, so it was taken into the paint shop. There, Lydia blasted as much paint off as she could with an air gun and then took the rest off with a combination of a blade, a grinder attachment on a drill and thinners with a red scotch pad. The steering rack is now clean and masked up, ready to go in the spray booth.
Scott has been doing modifications and fittings on the 1979 Arrow Ferrari Daytona. He’s fitted the rear bumpers, modified the number plate lamp because the car is made of fibreglass, whereas the number plate lamp is made to go on a metal car, the position of the headlamp mechanism has been adjusted and the headlamp motor has been fitted, he’s rewired the motor and checked that it functions properly, the horn has been fitted and it’s got new wiring, and the front grill has been fitted. Scott is now starting to modify the side lamp covers because they’re genuine Ferrari lenses and so they won’t fit in their original state.
It has been a solid week for Scott on the rebuild of the Ferrari Daytona. The brake lines are now in, along with the new fuel filler neck, headlamps and rear lights.
The indicator clusters need to be altered slightly prior to fitment so that will be a job for the beginning of next week.
Scott’s making great progress on the build now. Middle of next week we’ll be looking at re-installing the monstrous V12 engine.
Scott has now finished re-assembling the front axle for the 1979 Arrow Ferrari Daytona. The rear axle was re-assembled last week, which you can see a blog post about here. A blog post showing the front axle’s progress from yesterday can be accessed here. Now both axles are re-assembled, they were able to be fitted to the car!
The front and rear axles have both been rebuilt with all new bushings, bearings, shocks and springs. The brake calipers have been refurbished and Scott has replaced all the brake lines. The car was then lowered down onto the newly built axles and they were bolted on with new mountings.
Scott has been getting up to speed on the front axle of the 1979 Arrow Ferrari Daytona. The only tasks left to do on it is that the steering rack needs to be installed, the shocks need to be mounted and the front anti-roll bar needs to be installed. After all that, the front axle will be completed!
Now that the 1979 Arrow Ferrari Daytona is back in the workshop, Scott’s been straight back to work with it. In these photos you can see he’s started to reassemble the rear axle back together. An interesting point to make with this car is that the discs are on the inside of the rear axle rather than on the actual wheels.
This week we’ve welcomed the 1979 Arrow Ferrari Daytona back into the workshop after it’s been in storage for a little bit of time. The last time it was in here was back in March when the body had just been painted and the seats had finished being re-upholstered. You can read about its progress so far here. Stay tuned for updates!

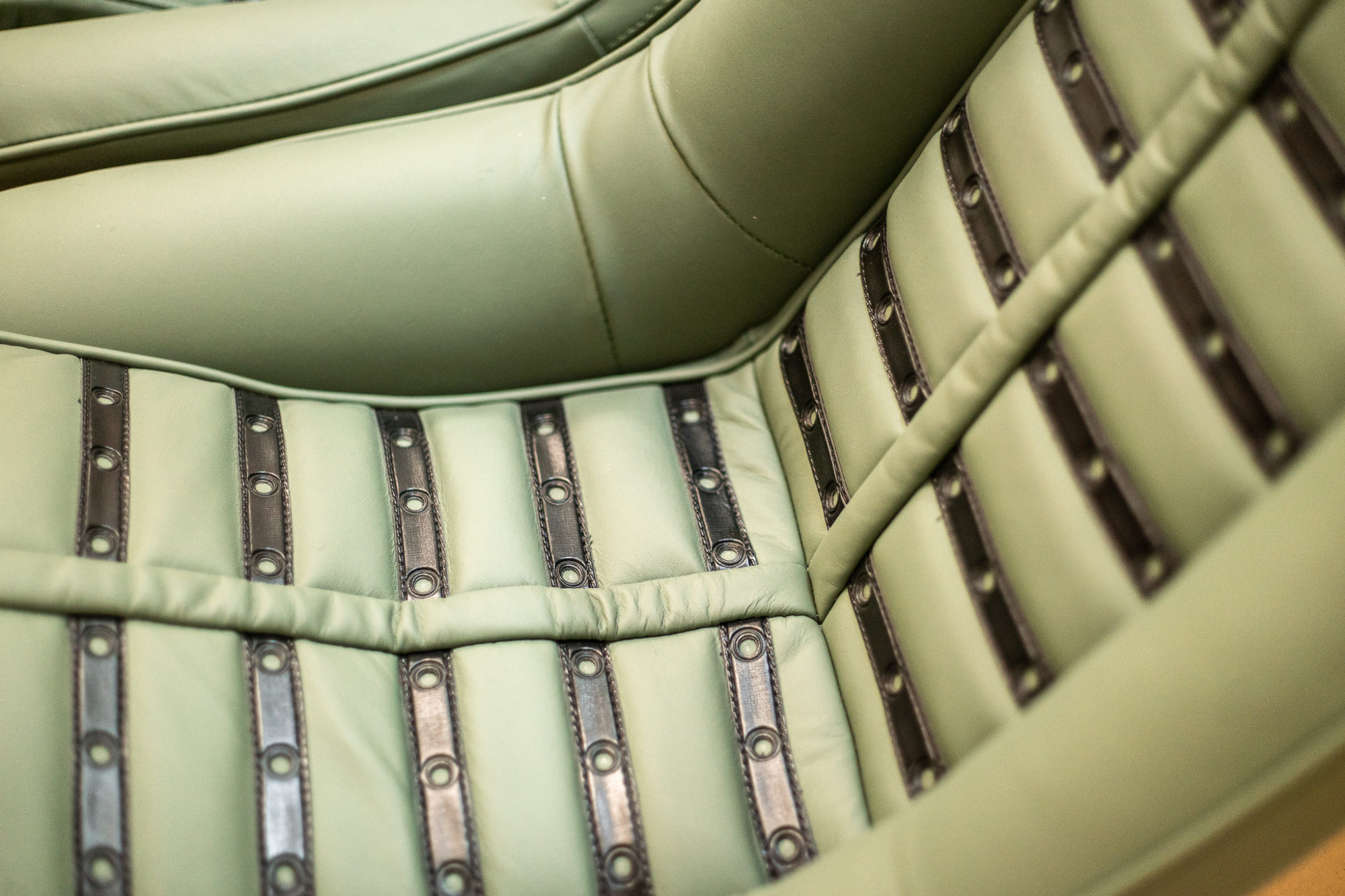

We thought we’d take a closer look at the finished Ferrari Daytona seats that the trim shop have made. Having had to make these all from scratch with appropriate modifications and alterations along the way, these seats are looking amazing. Finished in a green leather, they will match the colour tone of the Daytona paint work perfectly. We can’t wait to see them fitted in the Ferrari when its ready!
Lydia has also been working on covering various interior panels for the Ferarri as well. The first image shows the pair of console side panels in their original state before Lydia took off all the old leather, foam and plastic vents. She then cut new leather and foams out after cleaning the metal up, applied a layer of 3mm foam to the fronts of the panels and applied a layer of 3mm foam to the fronts of the panels. Lydia made sure that the leather was tucked in and glued underneath, then she added a layer of 3mm foam which was applied to the backs of the panels. All these fabrics were trimmed and tucked around the holes for the plastic vents to fit into.
Lydia then moved onto making the headlining for the Ferrari Daytona. She marked out the headlining fabric and foam for it, she then made slits for the flute lines on the foam so that the headlining fabric to lay better. She then fluted 14 flute lines, checking how it looked as she went. The finished result may look like a flate piece of fluted fabric, but it will become the headlining when fitted into place in the Daytona.
Scott has been taking out the heater in our Ferrari Daytona so that it can be re-wired and refurbished.
The trim restoration for our Daytona continues with Brian taking off any extra leather around the skirt of the seat, adding in eyelets for the headrest and pulling the leather over the side of the base onto the back. Lydia has been marking out and cutting new pieces of foam to glue onto the “inner” frame and glueing the foam in place and adding more foam padding to fill out the frame. Lydia has also pulled the cover over the frame and foam and glued the sides into place. She started with the calico strips that run around the edge, she then pulled it tight to get the shape of the seat. Once the seat frames were completed, she fitted the backboard and inner section into place.
Lydia also sanded down and re-covered the sills recently and then glued on new foam and leather.
The engine bay, bonnet, boot and wings have also been masked and painted, meaning that the exterior is now finished.
Lydia and Brian have been working on various panels for the Ferarri Daytona. Lydia has taken off the original leather and the screws from the sun visor panel to clean the fibreglass, ready to be recovered. She has also been taking the covers and foam off the A, B and C posts and sanding off the old glue. She then glued on s fresh 3mm of foam before wrapping the posts in new stretchy vinyl. Brian has removed the old cover from ‘c’ posts, sanded and filled any fibreglass to make it smooth before recovering in new vinyl. He has also removed the cover from the ‘a’ posts and cleaned the metal so it’s ready to be recovered. He did the same for the B panel too. Brian then removed the cover from the rear window top bar and cleaned up the fibreglass. He added new foam onto the top bar and glued new vinyl onto the rear of the panel. He repeats this process on the a, b and c panels too.
Kath has been recovering the head rests with new updated modifications to make the head rests a slimmer design on the clients request.
Kath has made the skirt and clipped the four sections together in position before sewing all the parts together. After sewing the mock together, Kath could refit the foam. She then unpicked the skirt ready to cut out new parts to then sew together. Once all sewn together, Kath could place the cover over the frame to see how it’s going to fit. With a few modifications, the cover fits perfectly and the skirt folds over the back of the cover. For the inner piece, Kath drew around the centre of the foam, marked out new leather, clipped together the pieces and finally sewed them all in. Once she ensured it fit perfectly, she could assemble all the pieces. She repeated the process on the second headrest.
Lydia has also been working to make the centre rear carpet section. The original carpet was red, which she needed to remove first before cleaning all the glue off the base. She drew around the original pieces of carpet to make out the new template which she then cut out new leather from. Once this was done, she sewed around the edges of each carpet to bind, then glued around the surround section. She then glued the fabric into place.
James has just started making up a brand new bespoke dashboard out of fibreglass for our Daytona. This will be a detailed and difficult process but worth it in the end.
Scott has been working to add new springs into the front suspension. He is also working on removing the front cross member mount bolt which has seized. This eventually will be holding in the front suspension.
The body of our Ferrari Daytona has officially left the paint shop and found its place in our main workshop, ready to begin the next step in its mechanical journey. The doors, boot and bonnet are set to be completed imminently and will join the body to be fitted.
Scott has been working on re-aligning the front suspension of the Daytona as well, making sure all the elements fit back together nearly after its refurbishment.
The trim shop are continuing with the interior with Lydia focusing on the rear quarter panels. She started off by taking the original leather and foam off them both, glued new 3mm foam onto each one and placed new leather over the top. She then turned her focus to working on the bottom sills where she started off by taking the original leather and foam off and sanded off the surface rust.
Brian has continued to strip down the old door panels and has added new foam to the panels as well. He’s then marked out new leather for the doors, glued the cover around the edges and pulled the leather tight. Brian also turned the fabric over the edges of the hole for the centre section and speaker hole. He has also fit rubber grommet for the door lock button to finish.
Lydia has also continued to take the covers off the seats. First, she undid the bolts holding the wide bars down which hold the seat in place in the car, then she drilled the rivets outs holding the covers into place. Next Lydia took out all the rusted staples which originally held the covers in place. Lydia had to twist the hog rings out, which were holding the inner seat cover tight around the frame as well as cutting the strings holding the inner seat tight in the middle and at the top. She then took the metal bars off that hold the rubber webbing over the frame and took the inner cover off, and then had to drill out a couple of more rivets to get the surrounding cover off.
Scott has been working on the suspension for our Ferarri Daytona. He’s replaced all the UJs, bearings and bushes on the front and rear suspension. He’s also started to reassemble the front and rear axles.
Brian has been marking up the old armrest covers ready to make new covers. He used the old pattern as a template to cut out the new leather, glued in the new metal trim for inside the handles, added the foam and glued up the edge of the arm rest. By pulling the arm rest tight and stapling it down, Brian can get a neat finish.
Lydia has been working on putting together the seat covers by adding pipping around the outside, adding calico underneath which gets pulled over the bars in the frame to keep it tight. Lydia then marks out the new back and skirt on fresh leather. Lydia sews on the hem to the skirt and adds the pieces back together.
Kath has been working on making the test run for the head rests. She starts by drawing around the inner section and adding the seam allowance. She then makes up the skirt, clips it together and sews it in place. Kath then makes the pattern for each part of the head rest, marks out the positions on the leather and foam and sews it all together. Once all the parts and skirts as sewed up, she fits it onto the foam head rest and adjusts it to fit. Once she’d modified it to fit perfectly, Kath can then sew round the inner section and fit that. Once that the pattern is made, Kath finds she needed to unpick the stitching and mark out the parts in he sage green leather.
Matt and Chris in the paint shop have smoothed and flattened the paint so its looking really shiny and even. Once the doors and panels have been painted, it can all be fitted together.
Lydia has continued making the seats for our Ferrari Daytona. Now with a whole new colour pallet, this is more than renovating the seats, its a total make over.
Lydia had to position the black insert strips onto the leather in the marked places for the squab covers and sew them into place. Lydia then punched holes out of the Insert Strips and stuffed scrim foam in-between the insert strips. She then sewed all round to seal them into place. She then sewed the middle strip between them.
Our specialist classic car painter, Matt, has been working on spraying our Ferrari Daytona its new green colour. Having sat in primer, Matt could then mask up the body, apply a base layer and then finish by applying the final colour. The doors, bonnet and boot still need to be done separately however we’re very excited to see this major development in the Daytona’s restoration.
Chris has also been working on the Daytona paint work and has sprayed many of the internal components black.
Kath has been working on the seats for the Daytona. Last week she rolled out and marked all the leather for two seat faces. Once she’d marked out the foam ready to stuff into the fluted panels, Kath cut the calico out so that all the seat faces were ready to be sewn together. All the parts for the seat face with the black strips were then laid out ready to be added to the frames.
Kath has been working on the Daytona seats again. The face of one of the seats wasn’t sewn straight originally, so Kath found that all of the red strips were uneven, and the centre strip wasn’t centralised either. With this in mind, Kath roughly drew around the original to get a basic shape before then making a template. Kath had to work out the distance between the black strips to make sure all the holes in the strips are even all the way down each strip.
Once Kath had worked out the correct measurements, she cut out the template and laid it into the seat. She found that the sides needed more as the frame came out, so she amended it to run along the seat frame in a nicer fashion.
Once Kath was happy with it, she cut the template up to make individual parts, and worked out the seam allowance around the frame and punched holes.
The pattern was then ready with all the parts to be marked out now for the final trim. Lydia is up next to make the cover.
The Ferrari Daytona is currently sat in primer and is being smoothed and prepared for its final paint step: the official colour. Before it can be painted, it needs to be masked. We hope to see the shell painted by the end of the week which will mark an exciting milestone in this restoration.
Here are some examples of different stitching options for the interior of the Daytona. The trim is set to be a similar tone of green to the exterior.
Scott has also been continuing his welding to the front subframe of the Daytona. The bottom of it was heavily damaged so he cut the damaged area out and straightened the supports inside. He then, cleaned up the rust inside and treated it by applying a zinc primer. Scott then fabricated a new panel and welded it in. Finally, he dressed the welds so it was ready to go to paint.
With Scott’s Land Rover hiatus now over, he can get back to the Daytona. Today he’s been welding the front cradle that holds the suspension as the element was suffering from some intense rust and corrosion. With new patches welded in, Scott can put it aside to fit once the Daytona has come out of paint.
Scott has drilled out the spot welds that held the spring locator into the spring seat to gain access to the rot underneath. He then cut all affected metal out and cleaned up rust off the sound metal and applied a zinc primer to the parts he knew wouldn’t be able to access after its welded back up. Scott then fabricated a new piece and welded that in place. After repairing the spring locator, Scott lined it up perfectly to where it came off and then placed it back on. He finished by grinding flat the plug welds so that once its painted it will look like it’s never been touched. Success!
The Daytona shell is sat in the paint shop in a bright green primer as we prepare it for its final paint. Chris hand made the green primer by adding a tint of green paint into the body primer. This allows the final green paint to sit more naturally.
Meanwhile, the interior trim has landed in the trim shop for our team to begin tackling. Lydia has begun taking apart the seats by removing the old and deteriating staples. Lydia then drilled out all the rivets, hiding the bottom flap in place and the sides. the next step was to undo all the bolts with a spanner which were holding these metal bars in place. These metal bars hold the seat down into the car on the floor. Lydia then begun undoing all the laces that run through the back straps and the inner seat cover. After more staples were taken out, Lydia had to undo these metal bars holding the edges of the rubber straps in place going along the back. Before Lydia could start to get the covers off, she had to then cut the strings running down the middle, which help the cover keep tight. Lydia could then take off the middle cover from the foam and frame, peeled the foams off the rubber straps that were held in place with glue and took the outer cover of the foam and frame. Once the covers had all come off, Lydia could then look at the construction of them properly and start marking them up to help make new ones in the future.
The bonnet and doors have finished their blocking stage and been sent back into the paint bay to be primed. When the rest of the body is finished, Scott and Chris will do the same to the body which has been masked.
Chris has also added epoxy onto some of the components and primed them for black DTM (direct to metal).

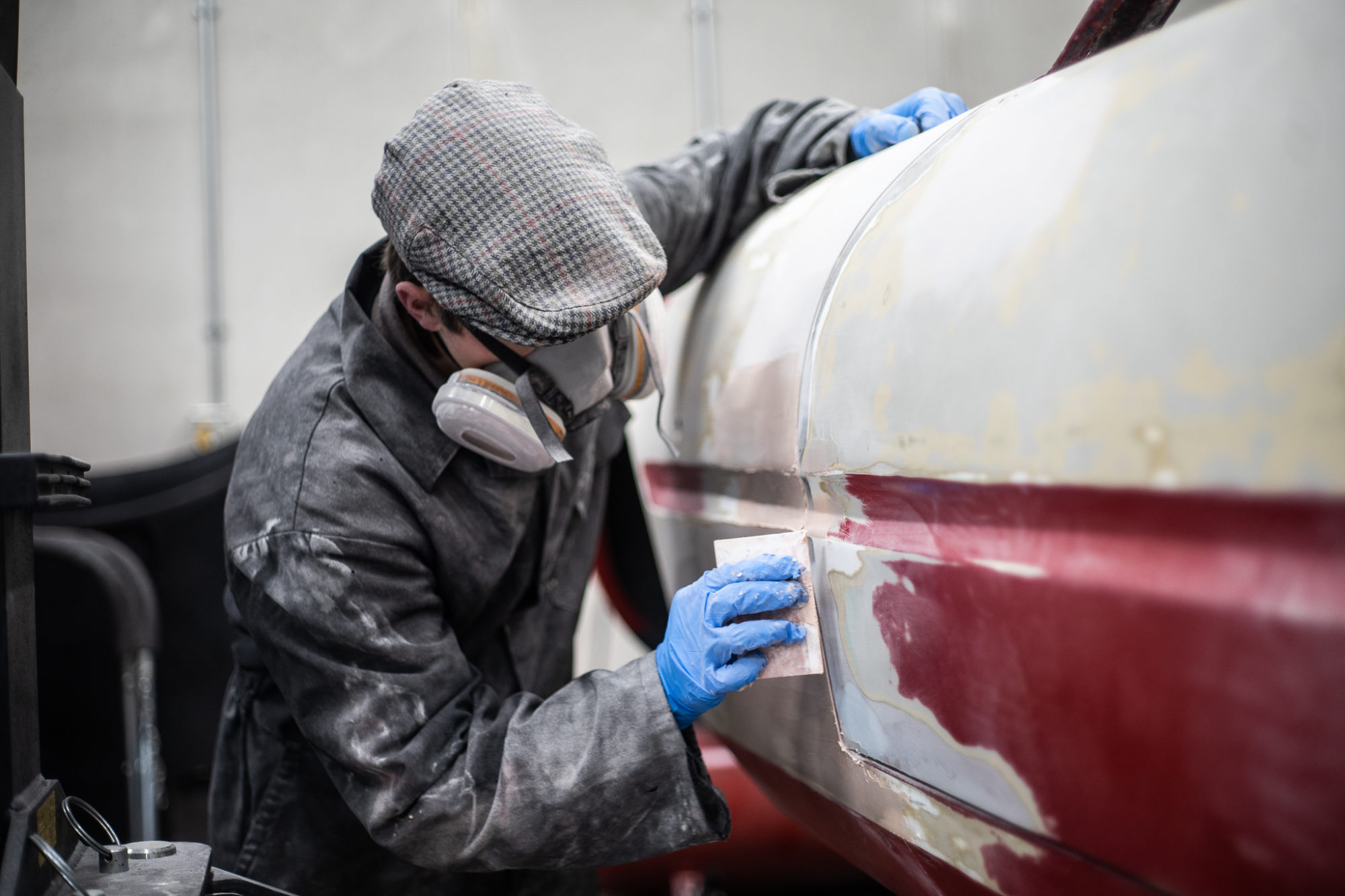

Scott has continued blocking out the Ferrari Daytona after its recent visit to the paint bay. All the primer has now been blocked down on the body. There’s a few more imperfections to smooth down before the next primer coat but otherwise, its almost ready for the next step!
The term blocking out refers to smoothing over the body and filing out any imperfections to make sure the body is all straight and ready to be painted.
Now that the Daytona has been primed and prepared in the paint shop, Scott has taken it back into the fabrication bay to continue smoothing over the body. The primer allows for any imperfection in the lines of the body to be seen more clearly and can therefore be addressed easier. Scott can make sure that the body lines are straight by sanding it down using a block.
Heres some progress photos from inside the fabrication bay and the paintshop. Its exciting to see such a huge project progress so well.
The Daytona entered the Paint Bay today under the trusted hands of Scott, one of our classic car technicians. We’re very fortunate that so many of our engineers are multifaceted in their skills, allowing us to, at times, dedicate one technician to an entire restoration. We of course get our specialists involved in these instances, but its great to see an individual technician lead a restoration from start to finish. This is what we’ve done with Scott, who’s a very experienced and talented classic car engineer. Assigning him to just one restoration means that he will see the total project from start to finish, taking on multiple disciplines. Under the supervision of our paint specialist, Scott tackled the primer stage of painting our Daytona.
Here we see him focusing on masking up and cleaning the body of the car, wiping clean all the elements in the preparation of the primer.
The cleaning process is an important part of the primer preparation as it removes any dust or debris that may interrupt the primer.
The next step was for Scott to apply the black epoxy primer on the chassis and engine bay. This black layer is a non-porous, high-bonding, anti-corrosive primer.
Scott’s next task was to spray on Polyfan Primer which is a polyester filler primer.
The final step was to apply an anticorrosive primer onto the underside of the Daytona. These steps can take all day as each layer must dry before applying the next. The advantage of this is that the paint booth is kept warm, making a cosy workplace during these cold winter days.
If you’ve been following us for a while, you’ll know we love getting behind the scenes shots and behind the behind the scenes shots! Here’s Ellie, our in house photographer and latest member to the marketing team, snapping Scott prepping the Daytona.
The Daytona is days away from entering the paint shop and we can’t wait! Scott is currently masking it up to protects elements of the body we don’t want to be painted such as the sills.
We’ve also engineered a frame for the Daytona to sit on to allow Scott to get under and around it easier.
Scott has continued to prep the body of the Daytona by preparing the chassis and engine bay for paint.
Scott has removed the heater blower to gain access to repair the rotten battery tray. The repair was done by cutting the rotten metal out and making a new panel to be welded in.
Scott has continued to clean up and remove rust from the chassis and engine bay to get it ready for paint. He’s also removed rust from the A posts by using a rust treatment. Scott has then repaired where the fibreglass of the body meets the steel framework of the ‘A’ posts that had been damaged by rust.
James has also been working on our Daytona. He’s removed the lower part of the left rear lower subframe mount as it had a snapped and rusted bolt. He made a replacement and location bracket to ensure that the new thread remains centred. Once this was made, James then welded it back in place.
Kath has been working on creating a custom dashboard by refurbishing the existing parts and designing elements as the client wishes. After stripping the dashboard, Kath will then start to recover the parts. The client has requested a custom dashboard with piano hinges. Many of these components are also original Ferrari pieces that the client has sourced, making this project not only a Ferrari Daytona Replica but a custom replica.
Kath removed the cover from the glovebox and dashboard to reveal the wood underneath meaning it is now ready for one of our workshop engineers to modify.
Here is Kath’s process:
The steering rack has been sent off to Kelly Bray Steering to be refurbished as it was leaking and the steering arm is bent.
Scott has continued with the fabrication and bodywork on the Daytona. This mostly includes going over the entire shell with filler to make sure
